Centering a documentView inside an NSScrollView

This took me a while to sort out, but I finally figured it out.

Basically if you want to have the documentView of a NSScrollView be centered in the view if the content area of the NSScrollView is bigger than the size of the document view, you would override the NSClipView class with a custom class. This class would then implement the -constrainBoundsRect: method as follows:

@implementation GClipView

- (NSRect)constrainBoundsRect:(NSRect)proposed
	NSRect r = [super constrainBoundsRect:proposed];
	NSRect doc = [self.documentView frame];

	if (proposed.size.width > doc.size.width) {
		r.origin.x = floor((doc.size.width - proposed.size.width)/2);
	if (proposed.size.height > doc.size.height) {
		r.origin.y = floor((doc.size.height - proposed.size.height)/2);

	return r;


Well, that’s a couple of hours I won’t get back.

So today’s mission: while working on a Mac app, I wanted the correct icon to show up for my documents.

And of course that involved a lot of hair pulling.

Here’s the answer.

(1) Create your document icon. Open the Assets.xcassets, right click on the icon list, and create a new MacOS Generic Icon. (Under “App Icons and Launch Images”.) Create your document icon in the resulting icon, renaming as appropriate. (In my case, I named it “DocIcon.”)

(2) On Xcode 9.4, if you open the project file, select “Info” and show the Document Types, the “Icon” drop down does not show the contents of the Assets catalog for your icon. Xcode lies!

Just type the Assets icon name into the drop-down. You’ll continue to see a question mark. Don’t sweat it.

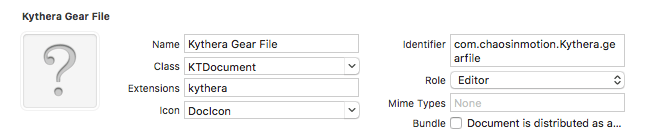

XCode Document Setting

(3) There is no step 3.

Now of course if you want to allow other apps to play in your background, you can also export a UTI. Notice how I defined an “Identifier” above? Well, if you don’t export a UTI this won’t work; leave “Identifier” as blank.

However, if you want to tell the OS that your file is a type of another file–like, for example, your file can be opened as a text file, then define your UTI identifier (using the com.blahblahblah style for UTIs), and add an exported UTI:

Extern UTI

This basically says “hey, MacOS, that UTI type “com.chaosinmotion.Kythera.gearfile” I told you about? Yeah, it’s also a “public.text” text file.

And you can also import UTI types; that basically tells the system “hey, I can open public.text files!” But that’s beyond the scope of stuff I care about right now.

Things to remember: files in test bundles.

For a program I’m working on, I want to store a file in the test bundle of an app for unit testing, then load that file to test a parser.

Specifically I want to create a class of XCTestCase, and create a file which is included in the unit test object. I then want to be able to load a URL from the file using NSBundle’s URLForResource:withExtension: method, so that I can test an internal parser using the test file, but without the test file being built as a part of the final application.

To do this, you need to load the URL from the test class’s bundle. So in the end, I wound up doing the following:

(1) Including the file as a target of the unit tests app.

(2) Loading the file with:

- (void)testZip
    NSBundle *b = [NSBundle bundleForClass:self.class];
    NSURL *url = [b URLForResource:@"MyFile" withExtension:@"ext"];
    XCTAssert(url != nil);
    ... Do my other tests with the file here...

Voyager I and II

The Loyal Engineers Steering NASA’s Voyager Probes Across the Universe

Back in the late 1980’s I worked for the Computer Graphics Lab at JPL on the Voyager II/Neptune flyby, alongside Sylvie Rueff and Jeff Goldsmith.

During the week where Voyager II reached Neptune, the Public Information Office at JPL made up several signs which were placed around the JPL campus, which showed the week of events–when Voyager II would reach certain locations, and when certain observational data would be downloaded. After the event was over, someone who I worked with in the Voyager II team (whose name escapes me now) grabbed the signs and gave one to each of us as a memento of the event.

All these years later, I now have it hanging in my house in Raleigh.

IMG 4758

Each of us who worked on the Voyager II mission also received a limited edition coin in commemoration of the event:

IMG 4759
The back has a replica of the famous Golden Record that was attached to the Voyager probe.

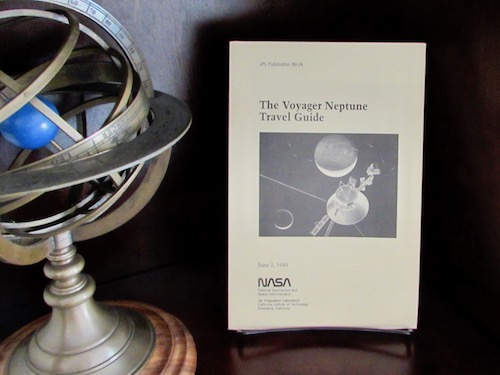

And I also kept the book published by JPL outlining the Voyager II flyby of Neptune.

IMG 4762

I’ve worked in several places since, and I’ve done a lot of interesting things in my career.

But this is the event I will remember the most fondly.

3D Clipping in Homogeneous Coordinates.

Recently I got an Arduboy, and I thought it’d be an interesting exercise to blow the dust off my computer graphics knowledge and put a simple 3D vector drawing system together. After all, while by today’s standards a 16 MHz doesn’t sound like a lot, back when I was learning Computer Graphics at Caltech in the 1980’s in Jim Blinn’s computer graphics class, that was quite a bit of computational power.

A limiting factor on the Arduboy is available RAM; after you factor in the off-screen bitmap for drawing, you only have perhaps 1250 bytes left–not a lot for a polygonal renderer. But when a 4×4 transformation matrix fits into 64 bytes, that’s plenty of space for a vector graphics pipeline.

First step in building a vector graphics pipeline, of course, is building a 3D line clipping system; you want to be able to clip lines not just to the left and right, top and bottom, but also to the near and far clipping planes. And you do want to clip before you draw the lines; on the Arduboy, line drawing coordinates are represented as 16-bit signed integers, and with a 3D rendering system it would be very easy to blow those limits.

Sadly, however, I was unable to find a concise description of the homogeneous coordinate system clipping algorithm that I used when I was at Caltech. It’d been 30 years, and I had a vague memory of how we did it–how we combined the Cohen-Sutherland algorithm with Clipping using homogeneous coordinates and some general observations made during class to build an efficient 3D line clipper. And an Internet search yielded very little.

So I thought I’d write an article here, in case in another 20 years I need to dip back into the archives to build yet another line clipping system.

If you want to skip the math and get to the algorithm, scroll down to the section marked “Algorithm.”

Some preliminaries, before we get started.

In Computer Graphics, it is advantageous to represent 3D points using homogeneous coordinates. That is, for any point in 3D space (x,y,z), you add an additional term w, giving (x,y,z,w).

To convert from a homogeneous coordinate (x,y,z,w), you use the following relationship:


Typically when we convert a point from 3D space to a homogeneous coordinates we simply tack a 1 at the end. There are special cases where you may want to do something simple (such as representing stars plotted infinitely far away, but typically you simply tack a 1 on:


The purpose of this extra parameter is to simplify coordinate transformation through transformation matrices. This extra 1 term, for example, allows us to represent translation (that is, moving a point from one location to another) as a simple matrix multiplication. So if we are moving the points in our system over by (5,3,2), we can create a 4×4 translation matrix:


and a point (x,y,z) would be translated through multiplication:


One nice thing about using homogeneous coordinates is that we can represent perspective through a matrix multiplication. I’ll save you the diagrams you see on other countless web sites by noting that to represent point perspective, you divide the location (x,y) by the distance z; objects far away appear smaller and closer objects appear larger.

If we use a perspective matrix which adjusts the size (x,y) to fit our screen (so objects to the far left are at x = -1, objects to the far top are at y = -1, right and bottom are at +1 respectively), then a point at (x,y,z) would map in our perspective transform:


(Side note: we use a right hand rule for coordinates. This means if up is +y and right is +x, then distance is -z. Which brings me to a rule of thumb with computer graphics: if the image looks wrong, look for an incorrect minus sign. While writing this article and testing the code below, I encountered at least 4 places where I had the wrong minus sign somewhere.)

Now if we convert our coordinates using the homogeneous coordinate to 3D point transformation above:


That is, our 3D point (in what we call “screen space”) has the point perspective transformation baked in, and points in 3D space at (x,y,z) show up with perspective on our 2D screen: we just drop the third term and plot points on our screen at the location (ax/-nz,by/-nz).

Notice that we’ve set our boundaries for screen space with the screen space rectangle (-1,-1)-(1,1). It is advantageous for us to clip our drawings at those boundaries, and (for reasons I’ll skip here), it helps to also clip Z coordinates at a near clipping plane (generally z=-1), and a far clipping plane (z=-∞).

The rest of this article will describe in concrete steps how to do this clipping in homogeneous coordinates, using the two articles cited at the start of this article.

First, let us note that to clip in the screen space x/w >= -1, in homogeneous coordinates we really are clipping at x >= -w.

Second, let us define what we mean by clipping. When we say we are clipping a line, what we’re doing is finding the point where a line intersects our clipping plane x >= -w. We then shorten the line at that new point, drawing only the segment that is visible.

So, given two points A and B, we want to find the point C where C intersects the plane x = -w, or rather, where x + w = 0:


We can do this by observing that the dot product of a point and a vector is the distance that point is along the vector, and that our clipping plane x + w = 0 can also be defined as the set of points P where


So to find our point C, we calculate the distance along the vector (1,0,0,1) (that is, x = -w) for the points A and B, and linearly interpolate to find the location C.


There are some other useful observations we can make about the set of relationships above.

First, if x is greater than -w — that is, if we are on the inside of the clipping plane x/w >= -1, then the dot product A(1,0,0,1) will be greater than or equal to 0.

Second, if both A(1,0,0,1) and B(1,0,0,1) are both negative, then trivially our line is not visible, because both endpoints of the line are not visible.

And we can repeat this operation for all the relationships: for x >= -w, x <= w, y >= -w, y <= w, and z >= -w.

The far clipping plane can also be taken care of, by observing that our far clipping plane at infinity is reached as z/w approaches infinity; that is, as w approaches zero. So our far clipping plane would be the relationship z <= 0.

This gives us the following normal vectors representing our 6 clipping planes:


Note that the vectors are set up so that when we are outside of the clipping plane, the value of the dot product is negative: that is, if the relationship x <= w holds, then 0 < w – x, and our clipping plane for that relationship is (-1 0 0 1).

The algorithm

This allows us to start sketching our solution.

Note our definition of a 3D vector is a homogeneous vector:

struct Vector3D
    double x,y,z,w;

First, we need a method to calculate all our clipping dot products. Note that because we’ve transformed our process into clipping against a set of vectors, the routine below could be generalized to add additional clipping planes. (For example, you may want to create a renderer that only renders the stuff in front of a wall in your game.)

static double Dot(int clipPlane, const Vector3D &v)
    switch (clipPlane) {
        case 0:
            return v.x + v.w;        /* v * (1 0 0 1) */
        case 1:
            return - v.x + v.w;      /* v * (-1 0 0 1) */
        case 2:
            return v.y + v.w;        /* v * (0 1 0 1) */
        case 3:
            return - v.y + v.w;      /* v * (0 -1 0 1) */
        case 4:
            return v.z + v.w;        /* v * (0 0 1 1) */
        case 5:
            return - v.z;            /* v * (0 0 -1 0) */
    return 0; /* Huh? */

Now we borrow from the Cohen-Sutherland algorithm, and create a method which generates an “outcode”; this is a bitmap with 6 bits, each bit is set if a point is “outside” our clipping plane–that is, if the dot product for the given coordinate is negative.

static uint8_t OutCode(const Vector3D &v)
    uint8_t outcode = 0;
    for (int i = 0; i < 6; ++i) {
        if (Dot(i,v) < 0) outcode |= (1 << i);
    return outcode;

(Note that we could easily optimize this method by using direct compares rather than by calling into our Dot method. We can also generalize it if the dot product method above is generalized.)

A nice feature about our OutCodes is that if we have the outcodes for points A and B, the following relationships are true:

  • if ((a_outcode & b_outcode) != 0) then both points are on the wrong side of at least one edge, and we can trivially reject this line.
  • if ((a_outcode | b_outcode) == 0) then both points are inside our viewing area, and we can trivially accept this line.

Now if it turns out both relationships are true, then we must clip our line A – B. And we can do that by calculating the alpha coordinates along A and B–if A is outside, we track the alpha on the A side of the line, and if B is outside, we track an alpha along B. And if the two flip–then we have a case like the one shown below:


This allows us to set up our final clipping algorithm.

First, we track the last point that was added, and the out code for that point:

static Vector3D oldPos;      // The last point we moved or draw to
static uint8_t oldOutCode;   // The last outcode for the old point.

We also rely on a drawing routine which actually draws in screen space. This should take the 3D homogeneous point provided, transform (using the transformation to 3D space noted above) to a 3D point, drop the Z component, convert the (x,y) components from the rectangle (-1,-1) – (1,1) to screen pixels, and draw the line as appropriate:

void MoveDrawScreen(bool draw, const Vector3D &v);

One last method we need is a utility method that, given a start point and an end point, and an alpha, calculates the linear interpolation between the start and end points.

static void Lerp(const Vector3D &a, const Vector3D &b, float alpha, Vector3D &out)
    float a1 = 1.0f - alpha;
    out.x = a1 * a.x + alpha * b.x;
    out.y = a1 * a.y + alpha * b.y;
    out.z = a1 * a.z + alpha * b.z;
    out.w = a1 * a.w + alpha * b.w;

Now our method declaration takes a new point and a flag that is true if we’re drawing a line, or false if we are moving to the point:

void MoveDrawClipping(bool draw, const Vector3D &v)
    Vector3D lerp;
    float aold;
    float anew;
    float alpha;
    float olda,newa;
    uint8_t m;
    uint8_t i;
    uint8_t newOutCode;
    uint8_t mask;

     *    Calculate the new outcode

    newOutCode = OutCode(v);

In the above we calculate the outcode for our new point v. This allows us to quickly determine if the point is inside or outside our visible area. This is useful when we want to just move to a point rather than draw to a line:

     *  If we are not drawing, and the point we're moving to is visible,
     *  pass the location upwards.

    if (!draw) {
        if (newOutCode == 0) {
    } else {

If draw is true, then we’re drawing a line, and so we get to the meat of our clipping algorithm. Note that our old out code and old points (stored in the globals above) have already been initialized. (Or rather, we assume they have been with an initial move call.)

So we can borrow from the Cohen-Sutherland algorithm and quickly determine if our line is entirely clipped or entirely visible:

         *  Fast accept/reject, from the Cohen-Sutherland algorithm.

        if (0 == (newOutCode & oldOutCode)) {
             *  The AND product is zero, which means the line may be
             *  visible. Calculate the OR product for fast accept.
             *  We also use the mask to quickly ignore those clipping
             *  planes which do not intersect our line

            mask = newOutCode | oldOutCode;
            if (0 == mask) {
                 *  Fast accept. Just draw the line. Note that our
                 *  code is set up so that the previous visible line has
                 *  already been moved to

            } else {

If we get to the code below, this means we have a value for mask which indicates the clipping planes that we intersect with. So now we want to interate through all the clipping planes, calculating the dot product for only those planes we intersect with:

                 *  At this point mask contains a 1 bit for every clipping
                 *  plane we're clipping against. Calculate C alpha to find
                 *  C, and adjust the endpoints A alpha (aold) and B alpha
                 *  (anew)

                aold = 0;            /* (1 - alpha) * old + alpha * new = pt */
                anew = 0;            /* so alpha = 0 == old, alpha = 1 == new */
                m = 1;
                for (i = 0; i < 6; ++i) {
                    if (mask & m) {

                        /* Calculate alpha; the intersection along the line */
                        /* vector intersecting the specified edge */

                        olda = Dot(i,oldPos);
                        newa = Dot(i,v);
                        alpha = olda/(olda-newa);

And next we need to bring in the side of the line which we know has clipped against the clipping plane. Meaning if A is outside our visible area and B is inside, we want to adjust Aα to the new value calculated in alpha; but if A is inside and B outside, we want to adjust Bα instead.

                        /* Now adjust the aold/anew endpoints according to */
                        /* which side (old or v) is outside. */
                        if (oldOutCode & m) {
                            if (aold < alpha) aold = alpha;
                        } else {
                            if (anew > alpha) anew = alpha;

And finally if somehow the edges cross, we have the circumstance above where the line is not visible but crosses two clipping planes. So we quickly reject that case:

                        if (aold > anew) {
                             *  Our line is not visible, so reject.

The rest simply closes our loop:

                    m <<= 1;

At this point if we have iterated through all six planes, we have a line which is visible. If our starting point in oldPos was not visible, then we need to move to the place where our starting point intersects with the clipping boundaries of our view space:

                if (i >= 6) {
                    /* Ran all clipping edges. */
                    if (oldOutCode) {
                        /* Old line coming into view */

And if our destination point is visible, we draw to it; otherwise, we draw to the point on the line we’re drawing to which intersects our clipping boundaries:

                    /* Draw to the new point */
                    if (newOutCode) {
                    } else {

Our clipping is done; all that is left is to close up the loops and conditionals, and store away in our globals the outcode for the point we just moved to, as well as the location of that point:


     *    Now update the old point to what we just moved to

    oldOutCode = newOutCode;
    oldPos = v;

There are a number of optimizations that can take place with the clipping code above. For example, we can also track an array of dot products so we’re not repeatedly calculating the same dot product over and over again. We could replace our outcode routine with simple compare operations. We could also extend the above routine to handle additional clipping planes.

But this gives us a vector line drawing clipping system that clips in homogeneous coordinates, complete with source code that can be compiled and executed.

What is old is new again; what started as a powerful desktop computer has now appeared as an embedded processor. So it’s good to remember the old techniques as we see more and more microcontrollers show up in the products we use.

Things to remember: broken singletons and XCTests

Ran into a bizarre problem this morning where a singleton (yeah, I know…) was being created twice during the execution of an XCTestCase.

That is, with code similar to:

+ (MyClass *)shared
	static MyClass *instance;
	static dispatch_once_t onceToken;
	dispatch_once(&onceToken, ^{
		instance = [[MyClass alloc] init];
	return instance;

During testing, if you set a breakpoint at the alloc/init line inside the dispatch_once block, you would see instance being created twice.

Which caused me all sorts of hair pulling this morning.

The solution? Well, the unit test code was including the main application during linking.

And the MyClass class was also explicitly included (through Target Membership, on the right hand side when selecting the MyClass.m file) in our unit tests as well.

What this means is that two instances of the MyClass class is being included. That means two sets of global variables, two sets of ‘onceToken’, two sets of ‘instance’. And two separate calls to initialize two separate instances, causing all sorts of confusion.

The answer?

Remove the MyClass.m class from Target Membership.

Well, I guess the real solution is to design the application without singletons, but that’s an exercise for another day.

Besides, there are times when you really want a singleton: you really want only one instance of a particular class to exist because it represents a common object shared across the entire application–and the semantics creates confusion if multiple objects are created. (This is also the case with NSNotificationCenter, for example.)

Things to remember: opening an SSL socket using CFStream

This was a pain in the neck, but I finally figured out the answer.

So I was attempting to open a connection to a server from iOS which may have a self-signed certificate installed.

The specific steps I used to open the connection (from my test harness) was:

1. Set up the variables

	NSString *host = @"";
	NSInteger port = 12345;
	CFReadStreamRef readStream;
	CFWriteStreamRef writeStream;

2. Set debugging diagnostics. Noted here so I can remember this trick.


3. Open the sockets.

	CFStreamCreatePairWithSocketToHost(kCFAllocatorDefault, (__bridge CFStringRef)host, (uint32_t)port, &readStream, &writeStream);

	NSInputStream *inStream = (__bridge_transfer NSInputStream *)readStream;
	NSOutputStream *outStream = (__bridge_transfer NSOutputStream *)writeStream;

4. Set up SSL. The part that tripped me up: you must set the properties for kCFStreamPropertySSLSettings after setting NSStreamSocketSecurityLevelKey. It appears the NSStreamSocketSecurityLevelKey setting overwrites the kCFStreampropertySSLSettings parameter.

	// Note: inStream and outStream are linked by an underlying object, so
	// parameters only need to be set on one of the two streams.

	NSDictionary *d = @{ (NSString *)kCFStreamSSLValidatesCertificateChain: (id)kCFBooleanFalse };
	[inStream setProperty:NSStreamSocketSecurityLevelNegotiatedSSL forKey:NSStreamSocketSecurityLevelKey];
	[inStream setProperty:d forKey:(id)kCFStreamPropertySSLSettings];

5. Open and initalize as needed. Here I’m just opening (because I don’t care if this blocks; this is test code). If using blocking API, use threads. Otherwise use the runloop and delegate APIs.

	[inStream open];
	[outStream open];

On the Java (server) side, the way I set up my server socket for listening to incoming connections was:

1. Set up the variables. Note that my Config class is an internal class that reads properties, and is beyond the scope of this exercise.

	Properties p = Config.get();
	String keystore = p.getProperty("keystorefile");
	String password = p.getProperty("keystorepassword");

	int port = 12345;

2. Load the keystore and key manager. This can be a signed or (in my case) self-signed certificate.

	FileInputStream keyFile = new FileInputStream(keystore);
	KeyStore keyStore = KeyStore.getInstance(KeyStore.getDefaultType());
	keyStore.load(keyFile, password.toCharArray());

	KeyManagerFactory keyManagerFactory = KeyManagerFactory.getInstance(KeyManagerFactory.getDefaultAlgorithm());
	keyManagerFactory.init(keyStore, password.toCharArray());

	KeyManager keyManagers[] = keyManagerFactory.getKeyManagers();

3. Create an SSLContext. Note that you cannot use “Default” for getInstance below, because that returns an already initialized context, and we want to initialize it with our parameters above. Also note that iOS 9 prefers TLS 1.2.

	SSLContext sslContext = SSLContext.getInstance("TLSv1.2");
	sslContext.init(keyManagers, null, new SecureRandom());

4. Open a ServerSocket class to listen for incoming connections. Note the constant 50 below is arbitrary.

	SSLServerSocketFactory socketFactory = sslContext.getServerSocketFactory();

	socket = socketFactory.createServerSocket(port, 50);

Note that the way I loaded the keystore is sort of the “hard way” to do this; my eventual goal is to have the Java startup code generate a self-signed certificate internally if a keystore is not provided, but I haven’t figured out how to do that yet. (There are plenty of pages out there that show how, but most of them rely on internal Java APIs, and I’m sort of allergic to using undocumented stuff.)

Creating a custom Key in Objective C

When creating a custom key in Objective C for NSDictionary or NSCache or the like, you need to create an object which does the following:

Implements <NSCopying> protocol.

If your key is invariant, you can implement the method copyWithZone: as follows:

- (id)copyWithZone:(NSZone *)zone
    return self;

Of course if your key is invariant, ideally you would create the key entirely using a custom init function, and mark all the properties (readonly).

Implement the isEqual: method.

This is part of the NSObject protocol. Note that any class (or nil) could be passed in as the argument to isEqual: method, so you may want to use the method isKindOfClass: to verify that you got what you expected as the parameter.

Implement the hash method.

This is also part of the NSObject protocol, and returns a NSUInteger value which provides a hash function of the data you passed in.

The hash function doesn’t need to be complicated. For example, if your key is three integers, your hash function could be as simple as:

- (NSUInteger)hash
    return (self.a << 8) ^ (self.b << 4) ^ self.c;

What is important is that two keys passed into your system are unlikely to have a similar value.

Also note that many of the classes that you see used routinely as keys (such as NSString or NSNumber) also follow this protocol. Meaning if your custom key has a string in it, you can use the NSString’s hash function as one of the inputs to your own hashing function:

- (NSUInteger)hash
    return (self.intVal << 16) ^ [self.stringVal hash];

Random thoughts.

  1. You have to write the code to understand if the algorithm is correct.
  2. There are no one-size fits all solutions, especially when it comes to design patterns. Solutions which solve most problems are general, and the more specific the solution (that is, the more restrictions placed on how the solution is to be implemented), the fewer problems that solution will solve.
